Understanding Audio Transformers: A Comprehensive Guide

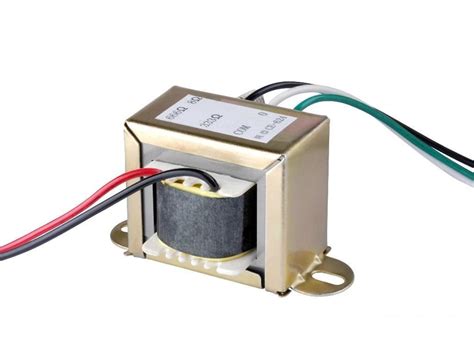

050700100 Audio Output Transformer from www.surplussales.com

Introduction

Audio transformers are essential components of any audio system. They are used to transfer audio signals between different stages of the system, such as amplifiers, mixers, and speakers. In this article, we will discuss the basics of audio transformers, their types, applications, and benefits.

What is an Audio Transformer?

An audio transformer is an electromagnetic device that transfers audio signals from one circuit to another, without any physical connection between them. It consists of two or more coils of wire, wound around a magnetic core. When an alternating current flows through the primary coil, it generates a magnetic field that induces a current in the secondary coil, which is connected to the load.

Types of Audio Transformers

There are several types of audio transformers, each with its own characteristics and applications. Some of the most common types are: 1. Step-up Transformer: It increases the voltage level of the input signal, while decreasing the current level. It is used to match low-level signals from microphones or guitars to the input of a high-gain amplifier. 2. Step-down Transformer: It decreases the voltage level of the input signal, while increasing the current level. It is used to match high-level signals from amplifiers to the input of a mixer or recorder. 3. Isolation Transformer: It provides electrical isolation between the input and output circuits, which eliminates ground loops and hum caused by electrical interference.

Applications of Audio Transformers

Audio transformers are used in a wide range of applications, including: 1. Microphones: They convert sound waves into electrical signals, which are then amplified and processed by the audio system. Some microphones use a built-in transformer to match their impedance to the input of the amplifier. 2. Amplifiers: They increase the level of the audio signal, while maintaining its quality and tone. Some amplifiers use a transformer in their output stage to match the impedance of the speakers. 3. Mixers: They combine multiple audio signals into a single output, which can be recorded or amplified. Some mixers use transformers in their input or output stages to match the levels and impedances of the signals.

Benefits of Audio Transformers

Audio transformers offer several benefits over other types of signal transfer methods, such as: 1. Improved Signal Quality: Transformers can improve the quality of the audio signal by reducing noise, distortion, and interference caused by ground loops or electromagnetic fields. 2. Impedance Matching: Transformers can match the impedance of the input and output circuits, which maximizes the transfer of power and minimizes signal loss. 3. Electrical Isolation: Transformers can provide electrical isolation between the input and output circuits, which eliminates ground loops and hum caused by electrical interference.

Conclusion

Audio transformers are essential components of any audio system, as they provide a reliable and efficient way to transfer audio signals between different stages. By understanding the basics of audio transformers, their types, applications, and benefits, you can make informed decisions when selecting and using them in your audio system.
